Your Hot Water Unit
Waves was built with Vulcan electric storage hot water systems. This shows a typical unit.
These heaters contain a sacrificial magnesium alloy anode, that is designed to corrode away ahead of any corrosion attacking the tank itself.
Vulcan and plumbers recommend replacing the anode each 5 to 8 years. These HWS units, if original, are now 9 years old. I know the anode in mine has never been replaced, so I recently set about the task.
Heater Top
The New Part
I got the new anode from Preece’s Plumbing in Clontarf. It was about $62 with GST.
Then I read on line the tools needed. A 27mm socket was recommended, and there was also a suggestion that a 28mm Tap Spanner would work. The Tap spanner would have worked, but for the turning bar being too thin, and just bending when I tried undoing the existing anode. The 27mm socket with half-inch drive is needed along with a socket handle and some form of extension so you can get enough force to unscrew the old anode. ( If you get brave and plan to change your HWS anode, you can contact John Griffiths U15 to borrow the socket and handle )
Items/Tools You Need
- the new anode
- a hacksaw
- small screwdriver
- strong G-Clamp
- the 27mm socket, handle and handle extender
- heat resistant gloves
- some old rags
The Part
The Sockets
Cut New Anode
The new anode will likely be too long to be able to slide into the HWS as the ceiling height restricts it. I determined that if I cut off 25 cm I could get it in.
Use a hack-saw, and NOT an angle grinder. If you try using an angle grinder you will create a massive problem with burning sparks of magnesium. The magnesium will burn and you could create mayhem.
There is also an option to buy a segmented anode which will be easier to install where clear space above your heater is not available. These are like a string of sausages and can be fitted more easily if need be. However, I suspect getting the old anode out will be a job where several cuts will be needed.
The whole replacement process tales some preparation and planning. At least 24 hours before you plan to do it, (or get it done by a plumber/handyman), turn off the electricity to the HWS in an attempt to get it a little cooler for the job.
On the day of the job, turn off the supply line to the HWS and the master valve to your unit.
Release the pressure in the piping by turning some taps on…
Too Long
Remove Old Anode
Once you loosen and unscrew the old anode, it will lift straight up. But will likely hit the ceiling.
Now you need your G-clamp to hold it up so you can make a cut in it. Use the gloves as it is still hot. Lift it up until near the ceiling and place the clamp at the heater top to hold it up.
Next, hacksaw through the old anode being careful not to cut the whole way. When it is nearly cut through, it should be able to be bent at the cut and broken off. Then lift the clamp with the remainder of the anode out.
You are now ready to insert the new one. Add some thread-tape to the new rod, which may have thread tape on it already.
Clean around the thread inside the heater with a rag, and slide the new rod in. Tighten firmly.
Extended Socket Handle
All Done
You can now turn the water supply back on, and check for any leak. Don’t forget to turn the power to the HWS back on.

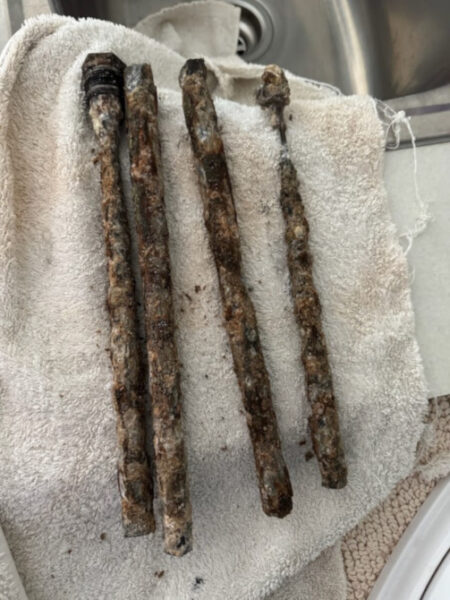

This image shows the corrosion on the old anode. It is not too bad, and should look like this or worse. Its purpose is to prevent corrosion of your tank and your heater element.
Old corroded anode
Time taken
From start to finish, this task took less than an hour, and that was with some learning along the way.
Remember to start cooling your HWS the day before.
Note the date of the change on the bung on top of the heater. That will help in the future.
John Griffiths, U15
Disclosure: IANAP (I Am Not A Plumber)
